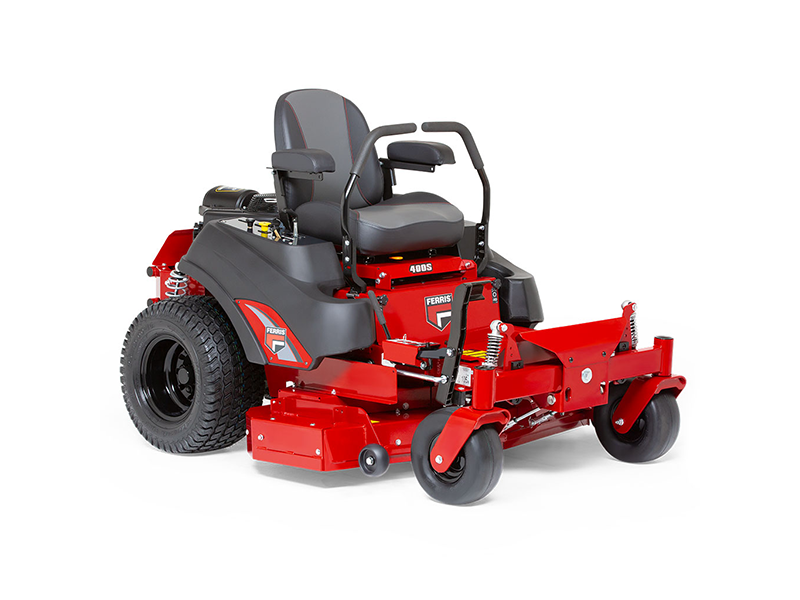

Part Number

5901990

Engine Make

Briggs & Stratton®

Engine Model

MOD44 Commercial Series™

Fuel Type

Petrol

Fuel System

Carburetor

Horsepower (HP)**

23.0

Gross kW**

17.2

Cylinders

2 Cylinders V-Twin

Displacement (cc)

724

Cooling

Air-cooled

Starting

Electric

Fuel Capacity (l)

23

Cutting Width (cm / inch)

122 / 48

Deck Configuration

TRIPLE configurable deck including: rear discharge, side discharge, mulching and mulching blades

Height of Cut (cm)

3,8 - 11,4

Deck Construction

3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles

Cast aluminium Ø135 mm; Ø20,0 mm shaft

Deck Lift System

Foot pedal

PTO Clutch

Ogura GT1 Clutch-Brake (118 Nm)

PTO Engagement

Electric

Front Suspension System

Pivoting front axle with front ride dampening shocks

Rear Suspension System

Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks

Reactive Deck Mounting System

N.A.

Drive System

Independent Hydro-Gear® ZT-3100® transaxles

Drive Axles

Ø25,4 mm Tapered with 4-bolt wheel hub

Drive Tyres (inch)

20 x 10.00 - 10 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch)

11 x 6.00 - 5 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h)

0 - 12,8

Speed-rev. (km/h)

0 - 6,4

Overall Length (cm)

180

Overall Width (cm)

RD: 124 - SD: 126 / 155 (Deflector up / Deflector down)

Dry Weight (kg)

369

Seat

Mid-back seat with padded armrests

Roll-Over Protection Structure

N.A.

Instrumentation

Fuel gauge, hour meter

Controls / Safety Circuit

Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake

Integrated transaxle brake

Warranty (Balance of Machine) ‡

4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first.

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡

5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡

90 Days

Warranty (Deck Drive Belt) ‡

90 Days

Warranty (Engine) ‡

3-Year Manufacturer’s Limited Warranty

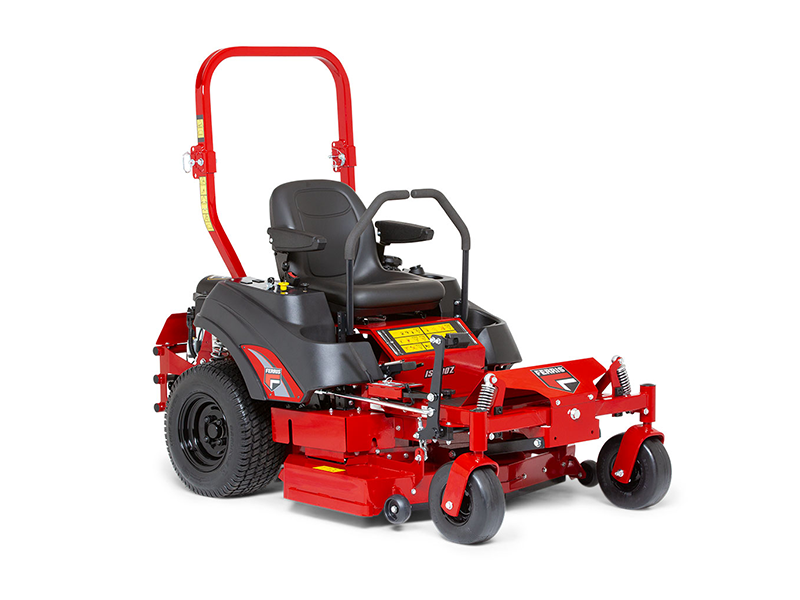

Part Number

5901905

Engine Make

Briggs & Stratton®

Engine Model

MOD44 Commercial Series™

Fuel Type

Petrol

Fuel System

Carburetor

Horsepower (HP)**

25.0

Gross kW**

18.7

Cylinders

2 Cylinders V-Twin

Displacement (cc)

724

Cooling

Air-cooled

Starting

Electric

Fuel Capacity (l)

22

Cutting Width (cm / inch)

112 / 44

Deck Configuration

Rear discharge and mulching blades

Height of Cut (cm)

3,8 - 11,4

Deck Construction

3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles

Cast aluminium Ø133 mm; Ø25,4 mm shaft

Deck Lift System

Foot pedal

PTO Clutch

Warner CMS Clutch-Brake (271 Nm)

PTO Engagement

Electric

Front Suspension System

Pivoting front axle with front ride dampening shocks

Rear Suspension System

Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks

Reactive Deck Mounting System

Rear

Drive System

Independent Hydro-Gear® ZT-3400® transaxles

Drive Axles

Ø28,6 mm drive shaft with 4-bolt wheel hub

Drive Tyres (inch)

20 x 8.00 - 10 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch)

11 x 4.00 - 5 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h)

0 - 14,5

Speed-rev. (km/h)

0 - 6,5

Overall Length (cm)

203

Overall Width (cm)

117

Dry Weight (kg)

418

Seat

Mid-back seat with armrests (chassis mounted seat belt)

Roll-Over Protection Structure

Standard, foldable

Instrumentation

Fuel gauge, hour meter

Controls / Safety Circuit

Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake

Integrated transaxle brake

Warranty (Balance of Machine) ‡

4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡

5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡

90 Days

Warranty (Deck Drive Belt) ‡

1-Year (12 months) or 100 hours, whichever occurs first

Warranty (Engine) ‡

3-Year Manufacturer’s Limited Warranty

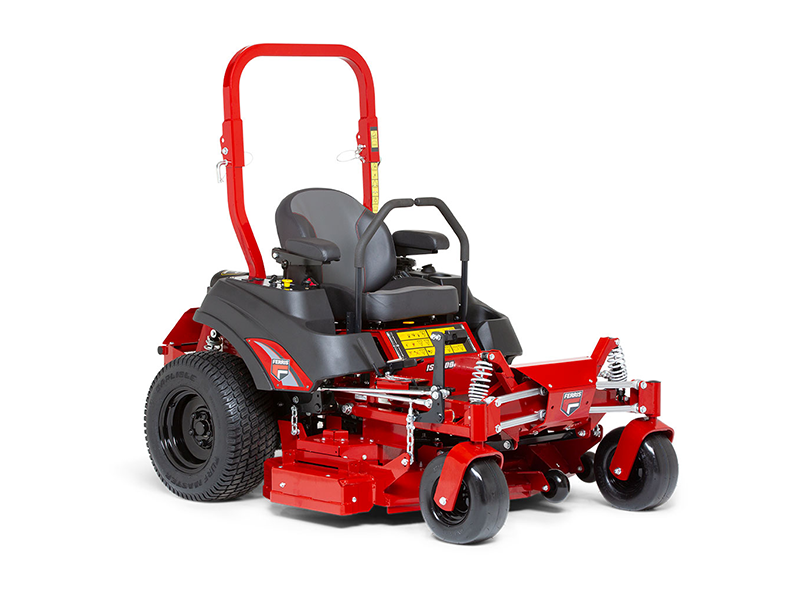

Part Number

5902021

Engine Make

Briggs & Stratton®

Engine Model

MOD49 Commercial Series™

Fuel Type

Petrol

Fuel System

Carburetor

Horsepower (HP)**

27.0

Gross kW**

20.1

Cylinders

2 Cylinders V-Twin

Displacement (cc)

810

Cooling

Air-cooled

Starting

Electric

Fuel Capacity (l)

22

Cutting Width (cm / inch)

132 / 52

Deck Configuration

TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades

Height of Cut (cm)

3,8 - 12,7

Deck Construction

3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles

Cast aluminium Ø133 mm; Ø25,4 mm shaft

Deck Lift System

Foot pedal, spring assisted

PTO Clutch

Warner CMS Clutch-Brake (271 Nm)

PTO Engagement

Electric

Front Suspension System

Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks

Rear Suspension System

Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks

Reactive Deck Mounting System

Front and rear

Drive System

Independent Hydro-Gear® ZT-3400® transaxles

Drive Axles

Ø28,6 mm drive shaft with 5-bolt wheel hub

Drive Tyres (inch)

23 x 10.50 - 12 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch)

13 x 6.50 - 6 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h)

0 - 16,0

Speed-rev. (km/h)

0 - 8,0

Overall Length (cm)

211

Overall Width (cm)

RD: 136,5 - SD: 142,5 / 176,5 (Deflector up / Deflector down)

Dry Weight (kg)

520

Seat

Mid-back seat with padded armrests and integrated retractable seat belt

Roll-Over Protection Structure

Standard, foldable

Instrumentation

Fuel gauge, hour meter

Controls / Safety Circuit

Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake

Integrated transaxle brake

Warranty (Balance of Machine) ‡

4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡

5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡

90 Days

Warranty (Deck Drive Belt) ‡

3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)

Warranty (Engine) ‡

3-Year Manufacturer’s Limited Warranty

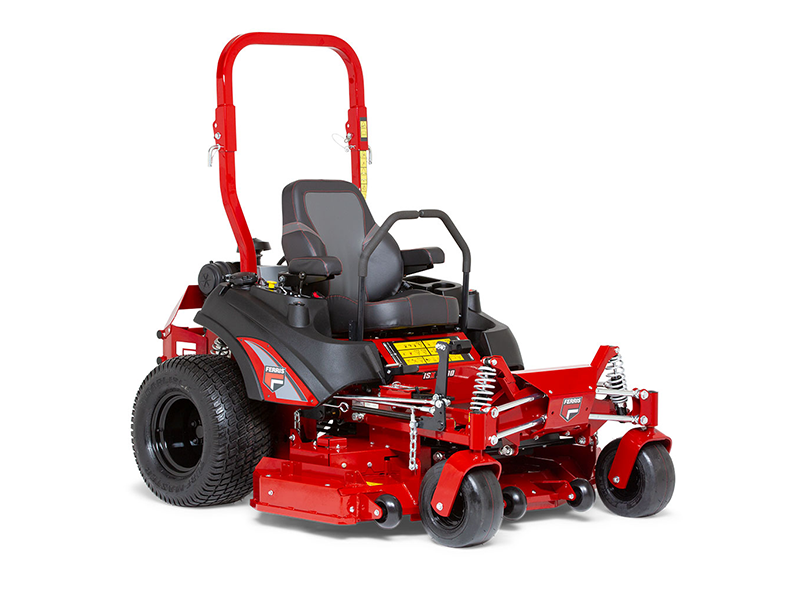

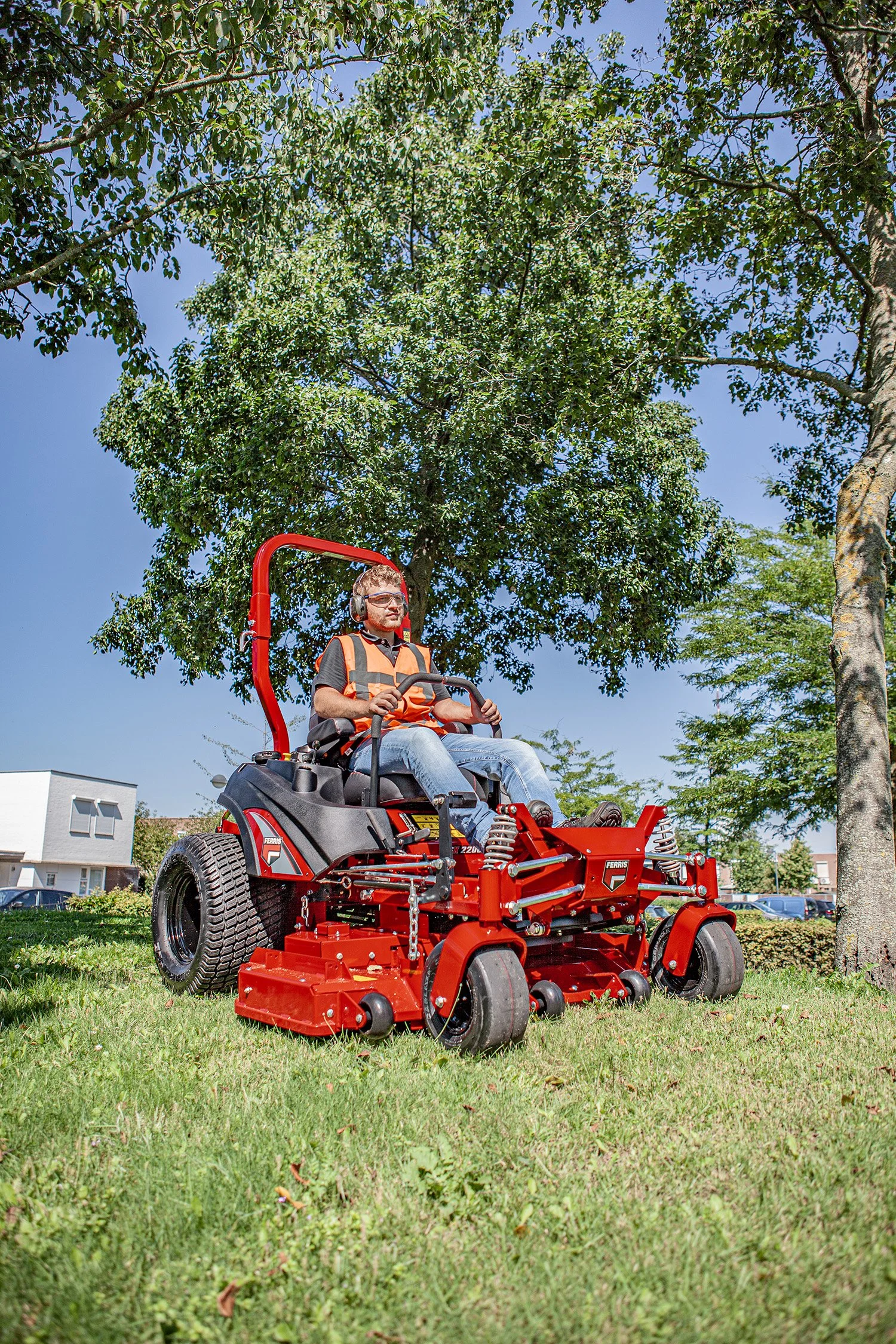

Part Number

5902030

Engine Make

Vanguard®

Engine Model

MOD49, 810 Series

Fuel Type

Petrol

Fuel System

Electronic Fuel Injection and Oil Guard™ System

Horsepower (HP)**

28.0

Gross kW**

20.9

Cylinders

2 Cylinders V-Twin

Displacement (cc)

810

Cooling

Air-cooled

Starting

Electric

Fuel Capacity (l)

42

Cutting Width (cm / inch)

132 - 155 / 52 - 61

Deck Configuration

TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades

Height of Cut (cm)

3,8 - 12,7

Deck Construction

3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles

Cast-iron Ø201 mm; Ø25,4 mm shaft

Deck Lift System

Foot pedal, spring assisted

PTO Clutch

Warner CMS Clutch-Brake (271 Nm)

PTO Engagement

Electric

Front Suspension System

Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks

Rear Suspension System

Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks

Reactive Deck Mounting System

Front and rear

Drive System

Independent Hydro-Gear® ZT-4400™ transaxles

Drive Axles

Ø34,93 mm drive shaft with 5-bolt wheel hub

Drive Tyres (inch)

24 x 12,00 - 12 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch)

13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h)

0 - 18,0

Speed-rev. (km/h)

0 - 8,0

Overall Length (cm)

213,5

Overall Width (cm)

RD: 161,5 - SD: 167,5 / 201,5 (Deflector up / Deflector down)

Dry Weight (kg)

639

Seat

Premium mid-back seat with padded armrests and integrated retractable seat belt

Roll-Over Protection Structure

Standard, foldable

Instrumentation

Fuel level gauge in each tank, hour meter, engine malfunction indicator

Controls / Safety Circuit

Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake

Internal wet disc brake in transaxle

Warranty (Balance of Machine) ‡

4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡

5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡

90 Days

Warranty (Deck Drive Belt) ‡

3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)

Warranty (Engine) ‡

3-Year Manufacturer’s Limited Warranty

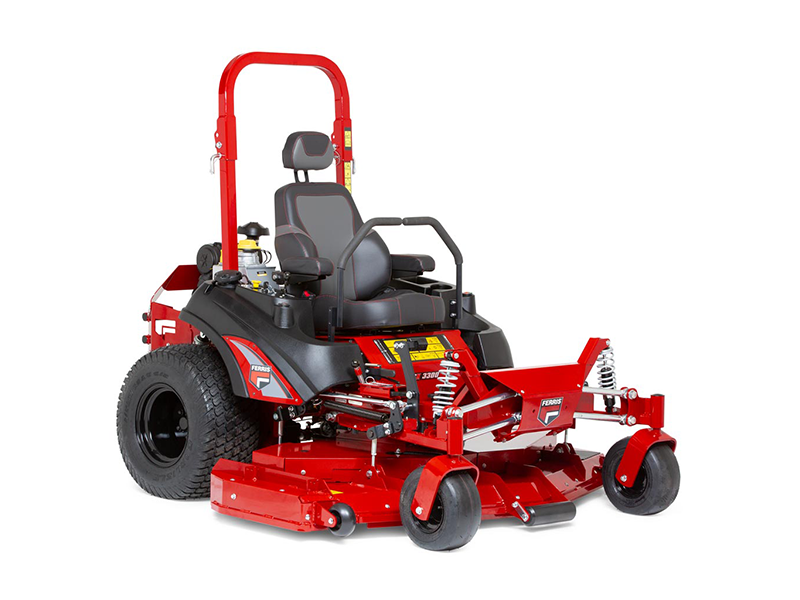

Part Number

5902036

Mower Deck Part Number

5901932

Engine Make

Vanguard®

Engine Model

MOD61, BIG BLOCK™

Fuel Type

Petrol

Fuel System

Electronic Fuel Injection, Electronic Throttle Control and Oil Guard™ System

Horsepower (HP)**

40.0

Gross kW**

29.9

Cylinders

2 Cylinders V-Twin

Displacement (cc)

993

Cooling

Air-cooled

Starting

Electric

Fuel Capacity (l)

42

Cutting Width (cm / inch)

155 - 183 / 61 - 72

Deck Configuration

TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades

Height of Cut (cm)

3,8 - 12,7

Deck Construction

3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles

HERCULES™ II Cast-iron Ø 257 mm; Ø 30,16 mm shaft

Deck Lift System

Hydraulic

PTO Clutch

Warner CMS Clutch-Brake (339 Nm)

PTO Engagement

Electric

Front Suspension System

Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks

Rear Suspension System

Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks

Reactive Deck Mounting System

Front and rear

Drive System

Independent Hydro-Gear® ZT-5400 Powertrain® transaxles

Drive Axles

Ø34,93 mm drive shaft with 5-bolt wheel hub

Drive Tyres (inch)

26 x 12.00 - 12 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch)

13 x 6.50 - 6 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h)

0 - 20

Speed-rev. (km/h)

0 - 10

Overall Length (cm)

221,5

Overall Width (cm)

RD: 188,5 - SD: 194,5 / 228,5 (Deflector up / Deflector down)

Dry Weight (kg)

788

Seat

Premium high-back seat with padded armrests, adjustable headrest and integrated retractable seat belt

Roll-Over Protection Structure

Standard, foldable

Instrumentation

Fuel level gauge in each tank, hour meter, engine malfunction indicator

Controls / Safety Circuit

Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake

Internal wet disc brake in transaxle

Warranty (Balance of Machine) ‡

4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡

5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡

90 Days

Warranty (Deck Drive Belt) ‡

3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)

Warranty (Engine) ‡

3-Year Manufacturer’s Limited Warranty
