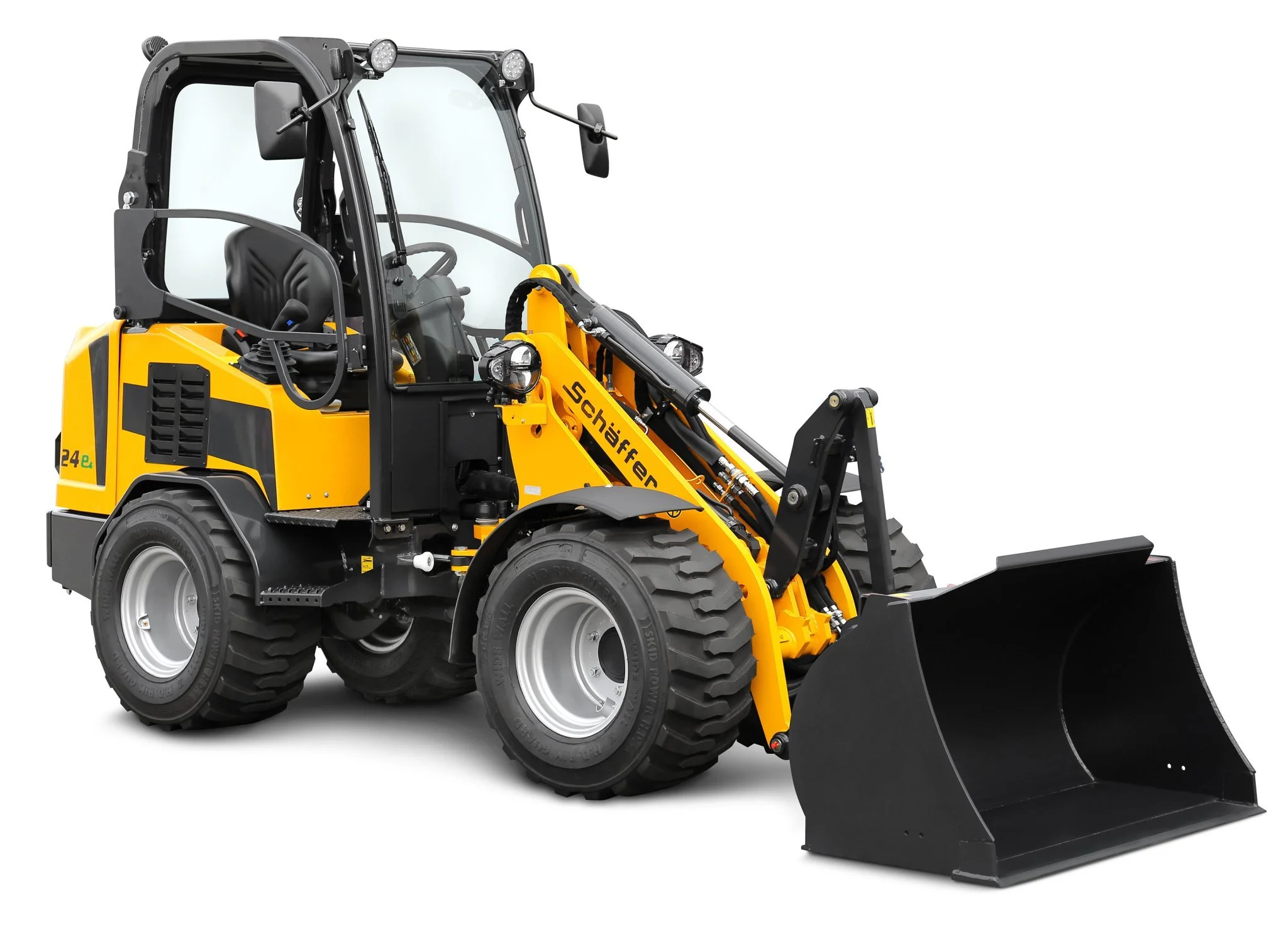

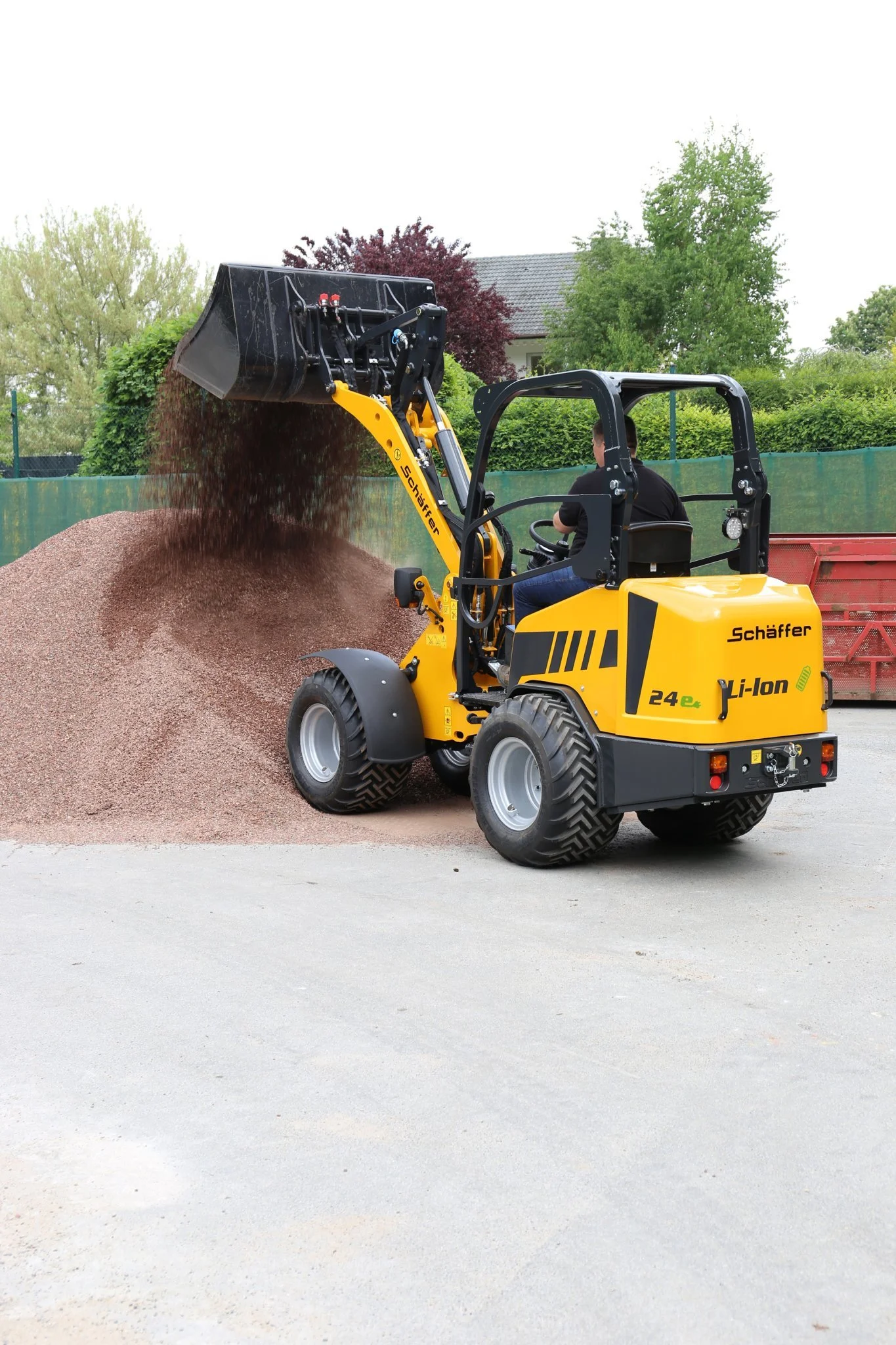

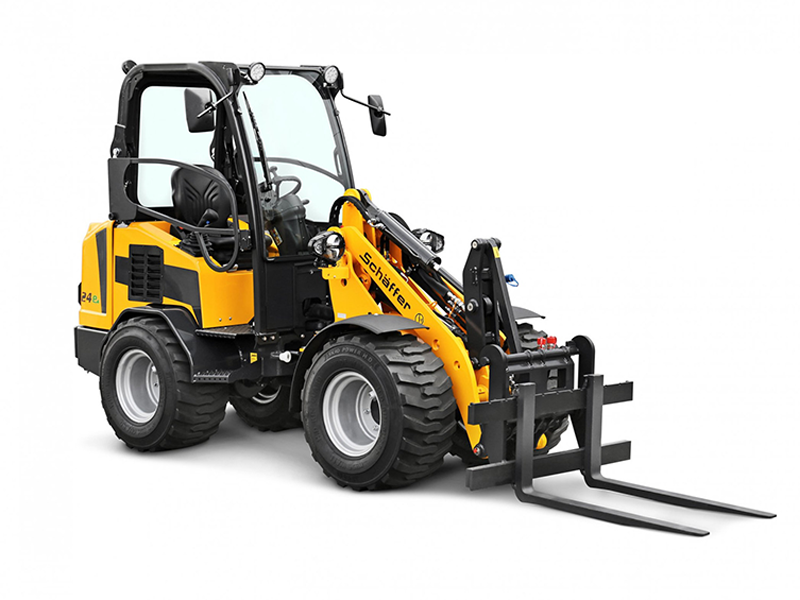

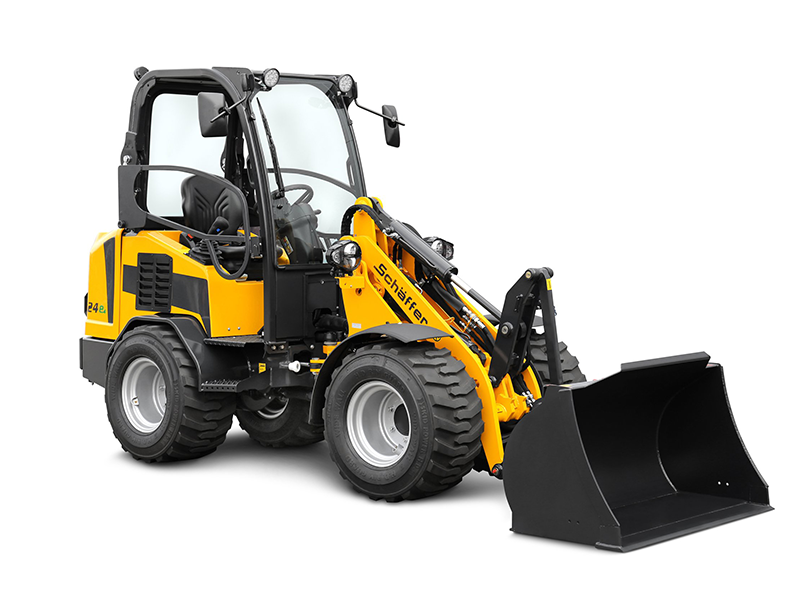

Standard equipment electric loader 24e

• Electric motor drive: 21 kW; electric motor working hydraulics: 9,7 kW

• Low version front carriage for best lifting force

• Electric four wheel drive with cardan shaft

• Li-Ion battery pack, 260 V / 15.65 kWh (31.3 kWh on option)

• On-board charger with Type 2 connector enables charging at a 230V power outlet (3 kW) or a wallbox (11 kW)

• Charging cable type 2 / CEE 16 A, 4 m

• Battery management system

• Energy recuperation

• Hill-Hold funktion: start up assistant to make hill starts easier

• Tyres 10.0/75-15.3 MPT, offset +40

• 20 km/h

• Eco mode to extend the operating time

• Genuine Schäffer axle, 6 hole

• Water cooling of electric motors

• Multiple disk brake, maintenance free; service and parking brake

• Maintenance free articulated pendulum joint

• Restraining system for protection roof

• LED working headlights: 2 x front, 1 x rear

• LED lighting system without ABE (General approval certificate) according to ordinance StVZO

• Acoustic reverse warning signal (can be switched off)

• Parallel lift

• Electronically operated additional controller

• SilencePlus gear pump, especially quiet

• Working hydraulics: 42 l/min

• Adjustable steering column

• Hour meter and charging status display

• Counter weight 100 kg mounted under rear chassis

• Rear weight end plate

• Main battery switch

• Tool Box

• Driver-on-board switch

• Quick-change frame SWH with hydraulic tool lock

Technical data electric loader 24e

• Engine

  • Output: 21 kW

  • Working hydraulics: 9,7 kW

• Tyres

  • Standard tyres: 10.0/75-15.3 MPT, ET+40

  • Option I: 27x10.5-15 SKD, ET+40

  • Option II: 31x15.5-15 SKD, ET-37

• Electric system

  • Operating voltage: 12 V

• Sounds and vibration

  • Sound pressure level LpA: 64 db(A)

  • Sound power level guaranteed LwA: 99 db(A)

  • Sound power level equivalent LwA: 90 db(A)

  • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²

  • Total body vibration acc. to ISO 8041: <0,5 m/s²

• Drive

  • Traction hydraulics: 4-wheel-drive, fully electric

  • Axles: Original Schäffer axles, 6 wheel nut rim

  • Speed: 0 - 20 kph

• Brakes and steering

  • Service braking system: Combined brake hydrostatic and multi-disc brake

  • Parking brake: Multi-disc brake running in oil bath

  • Steering: Fully hydraulic articulated/swivel steering

• Tank capacity

  • Hydraulic oil: 15 l

• Dimensions

  • (A) Wheelbase: 1,755 mm

  • (B) Chassis length: 3,320 mm

  • (C) Overall length with standard bucket: 4,045 mm

  • (D) Digging depth: 105 mm

  • (E) Max. working height: 3,230 mm

  • (G) Loading height with pallet forks: 2,360 mm

  • (H) Max. dumping height: 1,700 mm

  • (I) Front end height: 1,490 mm

  • (J) Dumping width: 260 mm

  • (K) Seat height: 1,160 mm

  • (L) Protective roof height: 2,190 mm

  • (L) Cab height: 2,140 mm

  • (M) Max. bucket pivot point: 2,500 mm

  • (N) Overall width / option: 1,020 (1,200 turned) - 1,030 - 1,570 mm

  • (O) Inner turning radius: 1,310 mm

  • (P) Outer turning radius: 2,330 mm

  • (Q) Outer radius with standard bucket: 2,710 mm

• Working hydraulics

  • Delivery rate: 42 l/min

  • Operat. pressure: 180 bar

• Weights

  • Operating weight protective roof incl. Original tyres, driver and standard bucket: 2,290 kg

  • Operating weight cabin incl. Original tyres, driver and standard bucket: 2,355 kg

  • Lifting capacity: 1,900 kg

  • Tipping load, straight, pallet fork acc. to ISO 8313: 1,610 - 1,749 kg

  • Tipping load, straight, bucket acc. to ISO 8313: 1,690 - 1,935 kg

  • Tipping load, articulated, pallet fork acc. to ISO 8313: 1,140 kg

  • Tipping load, articulated, bucket acc. to ISO 8313: 1,470 kg

  • Payload, pallet fork, even ground acc. to EN 474-3: 912 kg

  • Payload, pallet fork, uneven ground acc. to EN 474-3: 684 kg

  • Payload bucket acc. to EN 14397-1: 735 kg

• Transport of materials

  • Specific material weight: 1,6 t/m³

  • Bucket volume acc. to ISO 8041: 0,45 m³

  • Recommended bucket width: 1,3 m

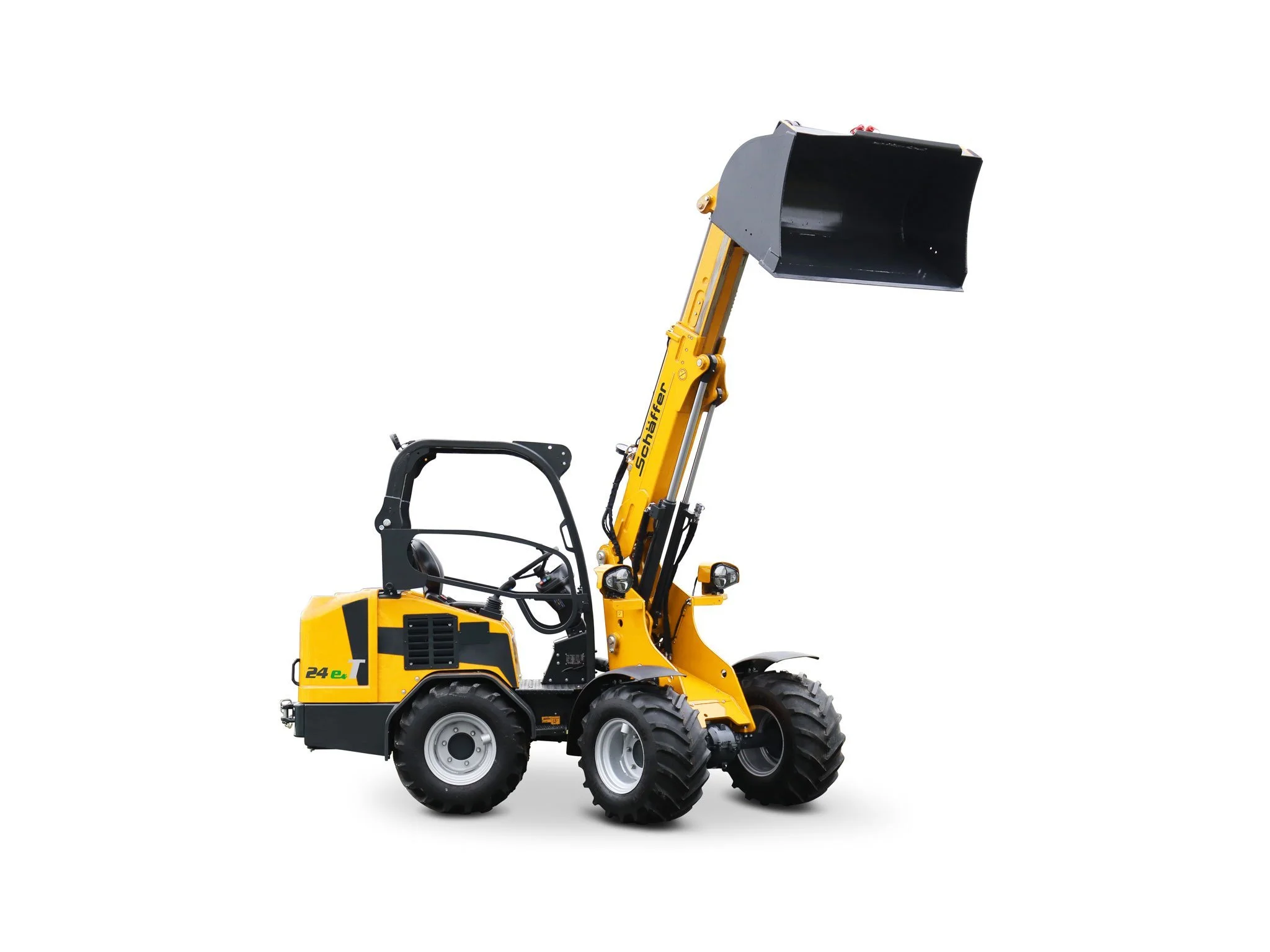

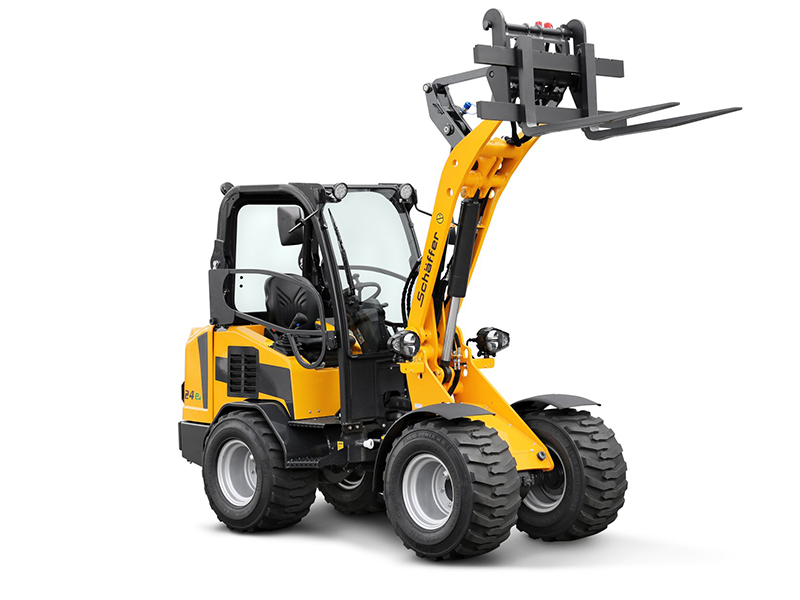

Standard equipment telescopic wheel loader 24e t

• Electric motor drive: 21 kW; electric motor working hydraulics: 9,7 kW

• Electric four wheel drive with cardan shaft

• Li-Ion battery pack, 240 V / 31.3 kWh

• On-board charger with Type 2 connector enables charging at a 230V power outlet (3 kW) or a wallbox (11 kW)

• Charging cable type 2 / CEE 16 A, 4 m

• Battery management system

• Energy recuperation

• Hill-Hold funktion: ?start up assistant? to make hill starts easier

• Tyres 31x15.5-15 SKD, offset 0

• 20 km/h

• Eco mode to extend the operating time

• Original Schäffer axles, wide design

• Ferro-form sliding elements in the telescopic arm

• Tool cylinder in the telescopic arm

• Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)

• Water cooling of electric motors

• Multiple disk brake, maintenance free; service and parking brake

• Maintenance free articulated pendulum joint

• Restraining system for protection roof

• LED working headlights: 2 x front, 1 x rear

• LED lighting system without ABE (General approval certificate) according to ordinance StVZO

• Acoustic reverse warning signal (can be switched off)

• Z-bar boom with parallel lift

• Electronically operated additional controller

• Working hydraulics: 42 l/min

• Adjustable steering column

• Hour meter and charging status display

• Counter weight 100 kg mounted under rear chassis

• Rear weight end plate and towing hitch

• Main battery switch

• Wide chassis with wider fender

• Tool Box

• Driver-on-board switch

• Quick-change frame SWH with hydraulic tool lock

Technical data telescopic wheel loader 24e t

• Engine

  • Output: Drive: 21 kW

  • Working hydraulics: 9.7 kW

• Tyres

  • Standard tyres: 31x15.5-15 SKD

  • Option I: 31x15.5-15 AS

• Electric system

  • Operating voltage: 12 V

• Dimensions

  • (A) Wheelbase: 1,870 mm

  • (B) Chassis length: 3,900 mm

  • (C) Overall length with standard bucket: 4,700 mm

  • (D) Digging depth: 90 mm

  • (E) Reach: 1,570 mm

  • (F) Swivelling point, telescopic arm retracted: 3,100 mm

  • (G) Loading height with pallet forks: 3,470 mm

  • (H) Max. dumping height: 3,010 mm

  • (I) Front end height: 1,580 mm

  • (J) Dumping width: 820 mm

  • (K) Seat height: 1,160 mm

  • (L) Protective roof height: 2,190 mm

  • (L) Cab height: 2,140 mm

  • (M) Max. bucket pivot point: 3,720 mm

  • (N) Overall width / option: 1,500 / 1,410 - 1,590 mm

  • (O) Inner turning radius: 1,150 mm

  • (P) Outer turning radius: 2,650 mm

  • (Q) Outer radius with standard bucket: 2,950 mm

• Drive

  • Traction hydraulics: 4-wheel-drive, fully electric

  • Axles: Original Schäffer axles, 6 wheel nut rim

  • Speed: 20 km/h

• Brakes and steering

  • Service braking system: Multi-disc brake running in oil bath

  • Parking brake: Multi-disc brake running in oil bath

  • Steering: Fully hydraulic articulated/swivel steering

• Tank capacity

  • Hydraulic oil: 30 l

• Working hydraulics

  • Delivery rate: 42 l/min

  • Operat. pressure: 180 bar

• Weights

  • Operating weight protective roof incl. Original tyres, driver and standard bucket: 2,750 kg

  • Operating weight cabin incl. Original tyres, driver and standard bucket: 2,815 kg

  • Lifting capacity: 1,600 kg

  • Tipping load, straight, pallet fork acc. to ISO 8313: 1,275 kg

• Sounds and vibration

  • Sound pressure level LpA: 64 db(A)

  • Sound power level guaranteed LwA: 99 db(A)

  • Sound power level equivalent LwA: 90 db(A)

  • Hand/arm vibration acc. to ISO 8041: < 2.5 m/s²

  • Total body vibration acc. to ISO 8041: < 0.5 m/s²
