Part Number 5901931

Engine Make Yanmar

Engine Model 3TNM74F-SAFS

Fuel Type Diesel (Euro Stage 5)

Renewable Fuel Compatibility*** HVO100, GTL, BTL

Fuel System Naturally aspirated, indirect injection

Horsepower (HP)** 24.2

Gross kW** 17.8

Cylinders 3 Cylinders in line

Displacement (cc) 993

Cooling Liquid cooled

Starting Electric

Fuel Capacity (l) 42

Cutting Width (cm / inch) 132 - 155 / 52 - 61

Deck Configuration Rear Discharge iCD™ and mulching blades

Height of Cut (cm) 3,8 - 12,7

Deck Construction 3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles Cast-iron Ø201 mm; Ø25,4 mm shaft

Deck Lift System Foot pedal, spring assisted

PTO Clutch Warner CMS Clutch-Brake (271 Nm)

PTO Engagement Electric

Front Suspension System IS® Independent front wheel suspension system utilizing single independent control arms and large adjustable coil-over-shocks

Rear Suspension System Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks

Reactive Deck Mounting System Front and rear

Drive System Independent Hydro-Gear® ZT-4400™ transaxles

Drive Axles Ø34,93 mm drive shaft with 5-bolt wheel hub

Drive Tyres (inch) 24 x 12,00 - 12 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch) 13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h) 0 - 18,0

Speed-rev. (km/h) 0 - 8,0

Overall Length (cm) 224

Overall Width (cm) 161,5

Dry Weight (kg) 743

Seat Premium mid-back seat with padded arm rests and integrated retractable seat belt

Roll-Over Protection Structure Standard, foldable

Instrumentation Fuel level gauge in each tank, visual water temperature gauge, oil pressure gauge, hour meter

Controls / Safety Circuit Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake Internal wet disc brake in transaxle

Warranty (Balance of Machine) ‡ 4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡ 5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡ 90 Days

Warranty (Deck Drive Belt) ‡ 1-Year (12 months) or 100 hours, whichever occurs first

Warranty (Engine) ‡ 2-Year / 2000 hours Manufacturer’s Limited Warranty

Assembled Height 224

Part Number 5901850

Mower Deck Part Number 5901869

Engine Make Caterpillar®

Engine Model C1.7

Fuel Type Diesel (Euro Stage 5)

Renewable Fuel Compatibility*** HVO100, GTL, BTL

Fuel System Common-rail, Turbo charged, direct injection with Diesel Oxidation Catalyst

Horsepower (HP)** 48.3

Gross kW** 36.0

Cylinders 3 Cylinders in line

Displacement (cc) 1.699

Cooling Liquid cooled

Starting Electric

Fuel Capacity (l) 51

Cutting Width (cm / inch) 183 / 72

Deck Configuration TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades

Height of Cut (cm) 3,8 - 15,2

Deck Construction 3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners

Mower Spindles HERCULES™ II Cast-iron Ø257 mm; Ø30,16 mm shaft

Deck Lift System Hydraulic

PTO Clutch Warner GT300 Clutch-Brake (610 Nm)

PTO Engagement Electric

Front Suspension System IS® Independent front wheel suspension system utilizing single independent control arms and large adjustable coil-over-shocks

Rear Suspension System Independent rear wheel suspension system utilizing double A-arms and large adjustable coil-over-shocks

Reactive Deck Mounting System Front and rear

Drive System Independant Hydro-Gear® PW 21cc pumps and Parker TG0335 wheel motors with industrial oil filter and remote oil cooler

Drive Axles Ø31,75 mm drive shaft with 5-bolt wheel hub

Drive Tyres (inch) 26 x 12.00 - 12 (4 ply) Pneumatic tyre w. turf tread

Caster Tyres (inch) 13 x 6.50 - 6 (4 ply) Pneumatic tyre w. smooth tread

Speed-fwd. (km/h) 0 - 20

Speed-rev. (km/h) 0 - 10

Overall Length (cm) 229,5

Overall Width (cm) RD: 188,5 - SD: 194,5 / 228,5 (Deflector up / Deflector down)

Dry Weight (kg) 1158

Seat Premium high-back seat with padded armrests, adjustable headrest and integrated retractable seat belt

Roll-Over Protection Structure Standard, foldable

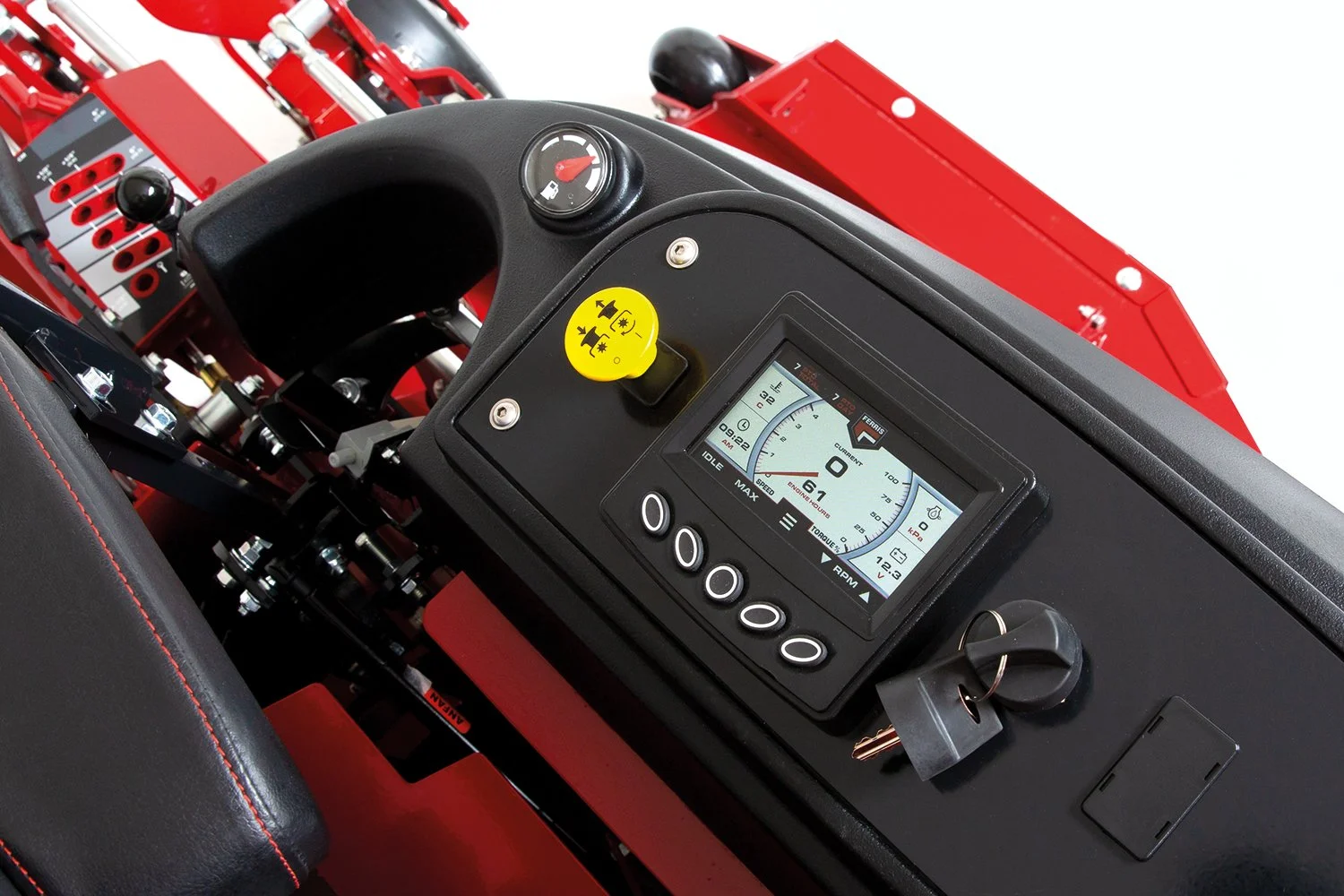

Instrumentation Fuel level gauge in each tank. Multi-functional color display showing engine functions, machine functions, engine warnings and maintenance reminders

Controls / Safety Circuit Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit

Parking Brake Drum type

Warranty (Balance of Machine) ‡ 4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)

Warranty (Coil-Over-Shocks, Suspension Related Components) ‡ 5-Years (60 months) unlimited hours

Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡ 90 Days

Warranty (Deck Drive Belt) ‡ 3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)

Warranty (Engine) ‡ 2-Year / 2000 hours Manufacturer’s Limited Warranty
